COverlayContainer Class Referenceabstract
Generic overlay container. More...
#include <overlays/COverlayContainer.hpp>

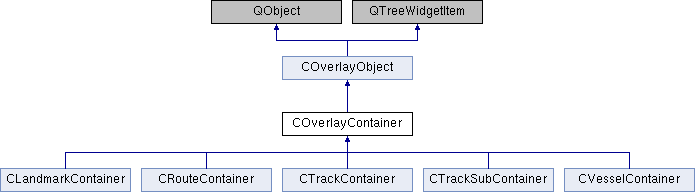

Inheritance diagram for COverlayContainer:
Public Member Functions | |
| virtual COverlayPoint * | matchScrPosition (const CChart *_poChart, const QPointF &_rqPointFScrPosition) const =0 |
| Returns the overlay container's point that (first) matches the given screen position (0 if none is found) More... | |
 Public Member Functions inherited from COverlayObject | |
| void | setName (const QString &_rqsName) |
| Sets this object's name. More... | |
| QString | getName () const |
| Returns this object's name. More... | |
| virtual COverlay * | useOverlay ()=0 |
| Returns this object's (base) overlay. More... | |
| virtual void | serialize (QDataStream &_rqDataStream) const |
| Serializes (store) this object's data to binary format. More... | |
| virtual void | unserialize (QDataStream &_rqDataStream) |
| Unserializes (restore) this object's data from binary format. More... | |
| virtual void | draw (const CChart *_poChart, QPainter *_pqPainter)=0 |
| Draws this object (itself or its content) More... | |
| virtual void | showDetail ()=0 |
| Displays this object's details (in the appropriate widget/view) More... | |
| virtual void | showEdit ()=0 |
| Displays this object's edit widget/view. More... | |
| QString | newChildName (const QString &_rqsName, int _iZeroPrefix=0, bool _bForceSuffix=false) const |
| Returns a valid (non-duplicate) name for a new sibling of this object. More... | |
| QString | newChildName (const QString &_rqsName, int _iZeroPrefix, int _iSuffix) const |
| Returns a suffixed (potentially duplicate) name for a new sibling of this object. More... | |
Protected Member Functions | |
| COverlayContainer (COverlayObject::EType _eType, const QString &_rqsName) | |
| virtual | ~COverlayContainer () |
| Protected Member Functions inherited from COverlayObject | |
| COverlayObject (EType _eType, const QString &_rqsName) | |
| virtual | ~COverlayObject () |
Additional Inherited Members | |
| Public Types inherited from COverlayObject | |
| enum | EType { OVERLAY = 1001 , CONTAINER = 1010 , SUBCONTAINER = 1011 , ITEM = 1100 , SUBITEM1 = 1101 , SUBITEM2 = 1102 } |
| Overlay object type. More... | |
| Protected Attributes inherited from COverlayObject | |
| QString | qsName |
| Object name. More... | |
Detailed Description
Generic overlay container.
This class defines the generic representation of an intermediate container (any level between base and items) of overlay objects
- See also
- COverlay
Definition at line 37 of file COverlayContainer.hpp.
Constructor & Destructor Documentation
◆ COverlayContainer()
|
protected |
Definition at line 27 of file COverlayContainer.cpp.
◆ ~COverlayContainer()
|
inlineprotectedvirtual |
Definition at line 47 of file COverlayContainer.hpp.
Member Function Documentation
◆ matchScrPosition()
|
pure virtual |
Returns the overlay container's point that (first) matches the given screen position (0 if none is found)
Implemented in CVesselContainer, CTrackSubContainer, CTrackContainer, CRouteContainer, and CLandmarkContainer.
The documentation for this class was generated from the following files:
- overlays/COverlayContainer.hpp
- overlays/COverlayContainer.cpp
