[UI] Track overlay point (item) More...

#include <overlays/track/CTrackPoint.hpp>

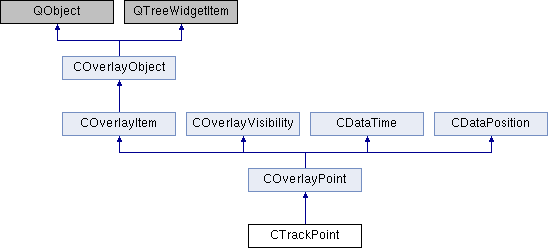

Inheritance diagram for CTrackPoint:

Public Member Functions
	CTrackPoint (const QString &_rqsName)

	CTrackPoint (const QString &_rqsName, const CDataPosition &_roDataPosition)

virtual	~CTrackPoint ()

virtual void	unserialize (QDataStream &_rqDataStream)
	Unserializes (restore) this object's data from binary format. More...

virtual COverlay *	useOverlay ()
	Returns this object's (base) overlay. More...

virtual void	draw (const CChart _poChart, QPainter _pqPainter)
	Draws this object (itself or its content) More...

virtual void	showDetail ()
	Displays this object's details (in the appropriate widget/view) More...

virtual void	showEdit ()
	Displays this object's edit widget/view. More...

virtual bool	matchScrPosition (const CChart *_poChart, const QPointF &_rqPointFScrPosition) const
	Returns whether this point matches the given screen position. More...

virtual void	toggleVisibility ()

void	toggleMultiSelected ()
	Toggles this track point's selection status. More...

void	setFixType (const QString &_rqsFixType)
	Sets this track point's fix type. More...

void	setSatelliteCount (int _iSatelliteCount)
	Sets this track point's satellite count. More...

void	setDopHorizontal (double _fdDopHorizontal)
	Sets this track point's horizontal Dilution-of-Precision (HDOP) More...

void	setDopVertical (double _fdDopVertical)
	Sets this track point's vertical Dilution-of-Precision (VDOP) More...

void	setDopPositional (double _fdDopPositional)
	Sets this track point's positional Dilution-of-Precision (PDOP) More...

QString	getFixType ()
	Sets this track point's fix type. More...

int	getSatelliteCount ()
	Sets this track point's satellite count. More...

double	getDopHorizontal ()
	Sets this track point's horizontal Dilution-of-Precision (HDOP) More...

double	getDopVertical ()
	Sets this track point's vertical Dilution-of-Precision (VDOP) More...

double	getDopPositional ()
	Sets this track point's positional Dilution-of-Precision (PDOP) More...

void	parseQVCT (const QDomElement &_rqDomElement)
	Retrieves this object's content from the given QVCT source (file) More...

void	parseGPX (const QDomElement &_rqDomElement)
	Retrieves this object's content from the given GPX source (file) More...

void	dumpQVCT (QXmlStreamWriter &_rqXmlStreamWriter) const
	Stores this object's content to the given QVCT destination (file) More...

void	dumpGPX (QXmlStreamWriter &_rqXmlStreamWriter) const
	Stores this object's content to the given GPX destination (file) More...

Public Member Functions inherited from COverlayPoint
virtual void	serialize (QDataStream &_rqDataStream) const
	Serializes (store) this object's data to binary format. More...

virtual void	drawText (const CChart _poChart, QPainter _pqPainter, const QString &_rqsText, const QPointF &_rqPointFScrPosition, bool _bItalic=false)
	Draws the given text, at the given screen position. More...

virtual void	drawLine (const CChart _poChart, QPainter _pqPainter, const COverlayPoint *_poOverlayPoint)
	Draws a line (between this and the other specified point), including distance/bearing data. More...

virtual void	drawMarker (const CChart _poChart, QPainter _pqPainter, const CDataPositionValidity *_poDataPositionValidity=0, bool _bSelected=false)
	Draws the point (marker) More...

virtual void	drawSymbol (const CChart _poChart, QPainter _pqPainter, const QString &_rqsSymbol)
	Draws the symbol (user-defined) More...

virtual void	drawTag (const CChart _poChart, QPainter _pqPainter, ETagPosition _eTagPosition=TAG_AUTO, const CDataTimeValidity _poDataTimeValidity=0, const CDataPositionValidity _poDataPositionValidity=0)
	Draws the tag (name) More...

Public Member Functions inherited from COverlayItem
void	setMultiSelected (bool _bMultiSelected)
	Sets this item's selection status. More...

bool	isMultiSelected () const
	Returns this item's selection status. More...

Public Member Functions inherited from COverlayObject
void	setName (const QString &_rqsName)
	Sets this object's name. More...

QString	getName () const
	Returns this object's name. More...

QString	newChildName (const QString &_rqsName, int _iZeroPrefix=0, bool _bForceSuffix=false) const
	Returns a valid (non-duplicate) name for a new sibling of this object. More...

QString	newChildName (const QString &_rqsName, int _iZeroPrefix, int _iSuffix) const
	Returns a suffixed (potentially duplicate) name for a new sibling of this object. More...

Public Member Functions inherited from COverlayVisibility
void	setVisible (bool _bVisible)
	Sets the point's (marker) visibility status. More...

virtual void	setVisibleName (bool _bVisibleName)
	Sets the name's (tag) visibility status. More...

virtual void	setVisiblePosition (bool _bVisiblePosition)
	Sets the position's visibility status. More...

virtual void	setVisibleCourse (bool _bVisibleCourse)
	Sets the course's visibility status. More...

virtual void	setVisibleRouting (bool _bVisibleRouting)
	Sets the routing's (data) visibility status. More...

void	setVisibility (int _iVisibilityCode)
	Sets the global (coded) visibility status. More...

bool	isVisible () const
	Returns the point's (marker) visibility status. More...

bool	isVisibleName () const
	Returns the tag's (name) visibility status. More...

bool	isVisiblePosition () const
	Returns the position's visibility status. More...

bool	isVisibleCourse () const
	Returns the course's visibility status. More...

bool	isVisibleRouting () const
	Returns the routing's (data) visibility status. More...

int	getVisibility () const
	Returns the global (coded) visibility status. More...

Public Member Functions inherited from CDataTime
	CDataTime (double _fdTime=UNDEFINED_TIME)

	CDataTime (const CDataTime &_roDataTime)

virtual	~CDataTime ()

void	setTime (double _fdTime)
	Sets the time, in seconds from Unix epoch. More...

void	setTime (time_t _tSeconds, long _lNanoSeconds)
	Sets the time, in seconds from Unix epoch, using timespec stanza. More...

void	setTime (const CDataTime &_roDataTime)
	Copy time from another time object. More...

void	resetTime ()
	Resets the time (to an undefined Time) More...

double	getTime () const
	Returns this time's time, in seconds from Unix epoch. More...

void	serialize (QDataStream &_rqDataStream) const
	Serializes (store) this object's data to binary format. More...

void	unserialize (QDataStream &_rqDataStream)
	Unserializes (restore) this object's data from binary format. More...

bool	operator== (const CDataTime &_roTime) const
	Equality operator. More...

bool	operator!= (const CDataTime &_roTime) const
	Inequality operator. More...

Public Member Functions inherited from CDataPosition
	CDataPosition ()

	CDataPosition (double _fdLongitude, double _fdLatitude, double _fdElevation=UNDEFINED_ELEVATION)

	CDataPosition (const CDataPosition &_roDataPosition)

virtual	~CDataPosition ()

void	setPosition (double _fdLongitude, double _fdLatitude, double _fdElevation=UNDEFINED_ELEVATION)
	Sets new coordinates. More...

void	setPosition (const CDataPosition &_roDataPosition)
	Copy coordinates from another position. More...

void	resetPosition ()
	Resets all coordinates (to an undefined position) More...

void	setElevation (double _fdElevation)
	Sets the elevation, in meters. More...

void	resetElevation ()
	Resets the elevation (to an undefined elevation) More...

double	getLongitude () const
	Returns this position's longitude, in degrees. More...

double	getLatitude () const
	Returns this position's latitude, in degrees. More...

double	getElevation () const
	Returns this position's elevation, in meters. More...

void	serialize (QDataStream &_rqDataStream) const
	Serializes (store) this object's data to binary format. More...

void	unserialize (QDataStream &_rqDataStream)
	Unserializes (restore) this object's data from binary format. More...

bool	operator== (const CDataPosition &_roPosition) const
	Equality operator. More...

bool	operator!= (const CDataPosition &_roPosition) const
	Inequality operator. More...

Private Attributes
QString	qsFixType
	Track point's fix type. More...

int	iSatelliteCount
	Track point's satellites count. More...

double	fdDopHorizontal
	Track point's horizontal Dilution-of-Precision (HDOP) More...

double	fdDopVertical
	Track point's vertical Dilution-of-Precision (VDOP) More...

double	fdDopPositional
	Track point's positional Dilution-of-Precision (PDOP) More...

Additional Inherited Members
Public Types inherited from COverlayPoint
enum	ETagPosition { TAG_AUTO , TAG_LEFT , TAG_RIGHT }

Public Types inherited from COverlayObject
enum	EType { OVERLAY = 1001 , CONTAINER = 1010 , SUBCONTAINER = 1011 , ITEM = 1100 , SUBITEM1 = 1101 , SUBITEM2 = 1102 }
	Overlay object type. More...

Static Public Member Functions inherited from COverlayPoint
static int	getPositionBox (const QTreeWidgetItem _pqTreeWidgetItem, CDataPosition _poDataPositionLower, CDataPosition *_poDataPositionUpper, int _iIndexMin=0, int _iIndexMax=-1)
	Returns the minimal geographical positions box containing the points in the given overlay/container. More...

Static Public Member Functions inherited from CDataTime
static bool	compareTimeAscending (const CDataTime &_roTime1, const CDataTime &_roTime2)
	Time (ascending sort) comparison operator. More...

static bool	compareTimeDescending (const CDataTime &_roTime1, const CDataTime &_roTime2)
	Time (descending sort) comparison operator. More...

Static Public Member Functions inherited from CDataPosition
static double	distanceGC (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Returns the WGS84-corrected great-circle distance between two points, in meters. More...

static double	bearingGC (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Returns the great-circle (initial) bearing between two points, in degrees. More...

static double	distanceRL (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Returns the rhumb-line distance between two points, in meters. More...

static double	bearingRL (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Returns the rhumb-line (constant) bearing between two points, in degrees. More...

static double	length (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Returns the length (rhumb-line distance and elevation delta) between two points, in meters. More...

static bool	compareLongitudeAscending (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Longitude (ascending sort) comparison operator. More...

static bool	compareLongitudeDescending (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Longitude (descending sort) comparison operator. More...

static bool	compareLatitudeAscending (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Latitude (ascending sort) comparison operator. More...

static bool	compareLatitudeDescending (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Latitude (descending sort) comparison operator. More...

static bool	compareElevationAscending (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Elevation (ascending sort) comparison operator. More...

static bool	compareElevationDescending (const CDataPosition &_roPosition1, const CDataPosition &_roPosition2)
	Elevation (descending sort) comparison operator. More...

Static Public Attributes inherited from CDataTime
static constexpr double	UNDEFINED_TIME = -9999999
	Specific value for an undefined time. More...

static const CDataTime	UNDEFINED
	Specific value for an undefined time object. More...

Static Public Attributes inherited from CDataPosition
static constexpr double	UNDEFINED_LONGITUDE = -999
	Specific value for an undefined longitude. More...

static constexpr double	UNDEFINED_LATITUDE = -99
	Specific value for an undefined latitude. More...

static constexpr double	UNDEFINED_ELEVATION = -9999999
	Specific value for an undefined elevation. More...

static const CDataPosition	UNDEFINED
	Specific value for an undefined position. More...

Protected Member Functions inherited from COverlayPoint
	COverlayPoint (const QString &_rqsName)

	COverlayPoint (const QString &_rqsName, const CDataPosition &_roDataPosition)

virtual	~COverlayPoint ()

Protected Member Functions inherited from COverlayItem
	COverlayItem (COverlayObject::EType _eType, const QString &_rqsName)

virtual	~COverlayItem ()

Protected Member Functions inherited from COverlayObject
	COverlayObject (EType _eType, const QString &_rqsName)

virtual	~COverlayObject ()

Protected Member Functions inherited from COverlayVisibility
	COverlayVisibility ()

virtual	~COverlayVisibility ()

virtual void	toggleVisibility (bool _bIncludeCourse, bool _bIncludeRouting)
	Toggle the visibility status. More...

Protected Attributes inherited from COverlayItem
bool	bMultiSelected
	Item's selection status. More...

Protected Attributes inherited from COverlayObject
QString	qsName
	Object name. More...

Protected Attributes inherited from COverlayVisibility
bool	bVisible
	Global (marker) visibility status. More...

bool	bVisibleName
	Name's (tag) visibility status. More...

bool	bVisiblePosition
	Position's visibility status. More...

bool	bVisibleCourse
	Course's visibility status. More...

bool	bVisibleRouting
	Routing's (data) visibility status. More...

Detailed Description

[UI] Track overlay point (item)

This class implements the overlay point (item) for the track overlay.

Author: Cedric Dufour http://cedric.dufour.name

Definition at line 39 of file CTrackPoint.hpp.

Constructor & Destructor Documentation

◆ CTrackPoint() [1/2]

CTrackPoint::CTrackPoint ( const QString & _rqsName )

Definition at line 38 of file CTrackPoint.cpp.

◆ CTrackPoint() [2/2]

CTrackPoint::CTrackPoint	(	const QString &	_rqsName,
		const CDataPosition &	_roDataPosition
	)

Definition at line 52 of file CTrackPoint.cpp.

◆ ~CTrackPoint()

virtual CTrackPoint::~CTrackPoint ( )

inlinevirtual

Definition at line 66 of file CTrackPoint.hpp.

Member Function Documentation

◆ unserialize()

void CTrackPoint::unserialize ( QDataStream & _rqDataStream )

virtual

Unserializes (restore) this object's data from binary format.

Reimplemented from COverlayPoint.

Definition at line 71 of file CTrackPoint.cpp.

◆ useOverlay()

virtual COverlay* CTrackPoint::useOverlay ( )

inlinevirtual

Returns this object's (base) overlay.

Implements COverlayObject.

Definition at line 77 of file CTrackPoint.hpp.

◆ draw()

virtual void CTrackPoint::draw	(	const CChart *	_poChart,
		QPainter *	_pqPainter
	)

inlinevirtual

Draws this object (itself or its content)

Implements COverlayObject.

Definition at line 80 of file CTrackPoint.hpp.

◆ showDetail()

void CTrackPoint::showDetail ( )

virtual

Displays this object's details (in the appropriate widget/view)

Implements COverlayObject.

Definition at line 77 of file CTrackPoint.cpp.

◆ showEdit()

virtual void CTrackPoint::showEdit ( )

inlinevirtual

Displays this object's edit widget/view.

Implements COverlayObject.

Definition at line 82 of file CTrackPoint.hpp.

◆ matchScrPosition()

bool CTrackPoint::matchScrPosition	(	const CChart *	_poChart,
		const QPointF &	_rqPointFScrPosition
	)		const

virtual

Returns whether this point matches the given screen position.

Reimplemented from COverlayPoint.

Definition at line 91 of file CTrackPoint.cpp.

◆ toggleVisibility()

virtual void CTrackPoint::toggleVisibility ( )

inlinevirtual

Definition at line 98 of file CTrackPoint.hpp.

◆ toggleMultiSelected()

void CTrackPoint::toggleMultiSelected ( )

Toggles this track point's selection status.

Definition at line 109 of file CTrackPoint.cpp.

◆ setFixType()

void CTrackPoint::setFixType ( const QString & _rqsFixType )

inline

Sets this track point's fix type.

Definition at line 110 of file CTrackPoint.hpp.

◆ setSatelliteCount()

void CTrackPoint::setSatelliteCount ( int _iSatelliteCount )

inline

Sets this track point's satellite count.

Definition at line 112 of file CTrackPoint.hpp.

◆ setDopHorizontal()

void CTrackPoint::setDopHorizontal ( double _fdDopHorizontal )

inline

Sets this track point's horizontal Dilution-of-Precision (HDOP)

Definition at line 114 of file CTrackPoint.hpp.

◆ setDopVertical()

void CTrackPoint::setDopVertical ( double _fdDopVertical )

inline

Sets this track point's vertical Dilution-of-Precision (VDOP)

Definition at line 116 of file CTrackPoint.hpp.

◆ setDopPositional()

void CTrackPoint::setDopPositional ( double _fdDopPositional )

inline

Sets this track point's positional Dilution-of-Precision (PDOP)

Definition at line 118 of file CTrackPoint.hpp.

◆ getFixType()

QString CTrackPoint::getFixType ( )

inline

Sets this track point's fix type.

Definition at line 123 of file CTrackPoint.hpp.

◆ getSatelliteCount()

int CTrackPoint::getSatelliteCount ( )

inline

Sets this track point's satellite count.

Definition at line 125 of file CTrackPoint.hpp.

◆ getDopHorizontal()

double CTrackPoint::getDopHorizontal ( )

inline

Sets this track point's horizontal Dilution-of-Precision (HDOP)

Definition at line 127 of file CTrackPoint.hpp.

◆ getDopVertical()

double CTrackPoint::getDopVertical ( )

inline

Sets this track point's vertical Dilution-of-Precision (VDOP)

Definition at line 129 of file CTrackPoint.hpp.

◆ getDopPositional()

double CTrackPoint::getDopPositional ( )

inline

Sets this track point's positional Dilution-of-Precision (PDOP)

Definition at line 131 of file CTrackPoint.hpp.

◆ parseQVCT()

void CTrackPoint::parseQVCT ( const QDomElement & _rqDomElement )

Retrieves this object's content from the given QVCT source (file)

Definition at line 118 of file CTrackPoint.cpp.

◆ parseGPX()

void CTrackPoint::parseGPX ( const QDomElement & _rqDomElement )

Retrieves this object's content from the given GPX source (file)

Definition at line 136 of file CTrackPoint.cpp.

◆ dumpQVCT()

void CTrackPoint::dumpQVCT ( QXmlStreamWriter & _rqXmlStreamWriter ) const

Stores this object's content to the given QVCT destination (file)

Definition at line 161 of file CTrackPoint.cpp.

◆ dumpGPX()

void CTrackPoint::dumpGPX ( QXmlStreamWriter & _rqXmlStreamWriter ) const

Stores this object's content to the given GPX destination (file)

Definition at line 200 of file CTrackPoint.cpp.

Member Data Documentation

◆ qsFixType

QString CTrackPoint::qsFixType

private

Track point's fix type.

Definition at line 48 of file CTrackPoint.hpp.

◆ iSatelliteCount

int CTrackPoint::iSatelliteCount

private

Track point's satellites count.

Definition at line 50 of file CTrackPoint.hpp.

◆ fdDopHorizontal

double CTrackPoint::fdDopHorizontal

private

Track point's horizontal Dilution-of-Precision (HDOP)

Definition at line 52 of file CTrackPoint.hpp.

◆ fdDopVertical

double CTrackPoint::fdDopVertical

private

Track point's vertical Dilution-of-Precision (VDOP)

Definition at line 54 of file CTrackPoint.hpp.

◆ fdDopPositional

double CTrackPoint::fdDopPositional

private

Track point's positional Dilution-of-Precision (PDOP)

Definition at line 56 of file CTrackPoint.hpp.

The documentation for this class was generated from the following files:

overlays/track/CTrackPoint.hpp
overlays/track/CTrackPoint.cpp

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CTrackPoint() [1/2]

◆ CTrackPoint() [2/2]

◆ ~CTrackPoint()

Member Function Documentation

◆ unserialize()

◆ useOverlay()

◆ draw()

◆ showDetail()

◆ showEdit()

◆ matchScrPosition()

◆ toggleVisibility()

◆ toggleMultiSelected()

◆ setFixType()

◆ setSatelliteCount()

◆ setDopHorizontal()

◆ setDopVertical()

◆ setDopPositional()

◆ getFixType()

◆ getSatelliteCount()

◆ getDopHorizontal()

◆ getDopVertical()

◆ getDopPositional()

◆ parseQVCT()

◆ parseGPX()

◆ dumpQVCT()

◆ dumpGPX()

Member Data Documentation

◆ qsFixType

◆ iSatelliteCount

◆ fdDopHorizontal

◆ fdDopVertical

◆ fdDopPositional
